Precision Timing Solutions for Every Application
IRIG-B, UDP, NTP — perfectly synchronized, highly reliable, mission-ready
NTP TIME DISPLAYS

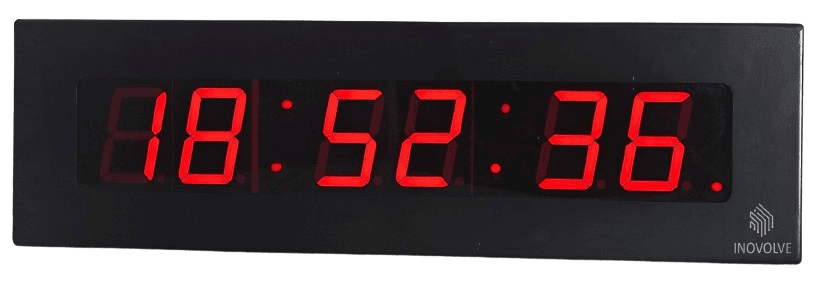

6/9 Digit NTP Displays
A high-visibility digital time display synchronized with NTP servers via Ethernet. Designed for industrial applications requiring uncompromised accuracy, with 6-digit and 9-digit display formats, and full browser configuration.
- Accurate NTP-synchronized time via Ethernet (RJ-45)
- 2-inch, 4-inch and 8-inch seven-segment bright red LED displays
- Real-Time Clock backup
- Web-based configuration — no extra software required.
TIME CODE GENERATORS

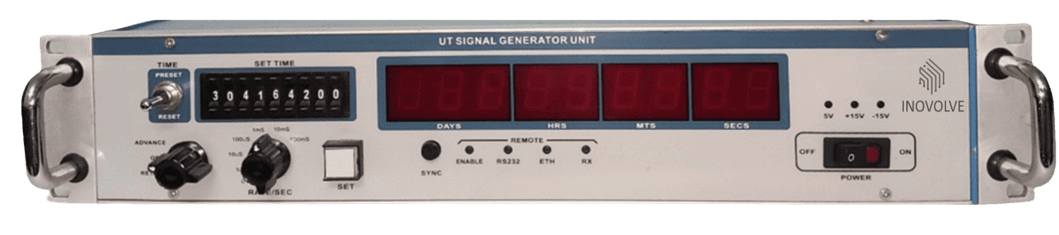

IRIG-B Time Code Generators - Universal Time
The Universal Time code Generator is a precision digital clock, which generates and displays time in days, hours, minutes and seconds.

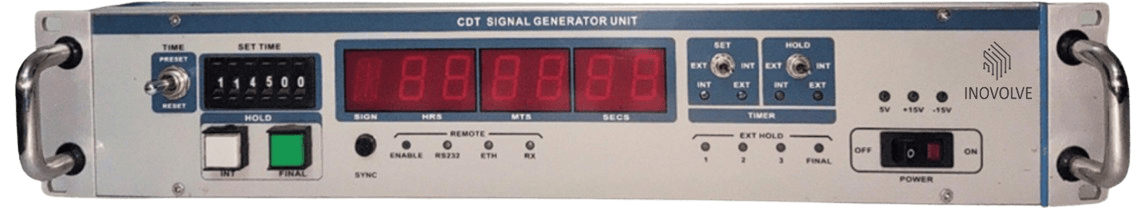

Modified IRIG-B Time Code Generator - CDT

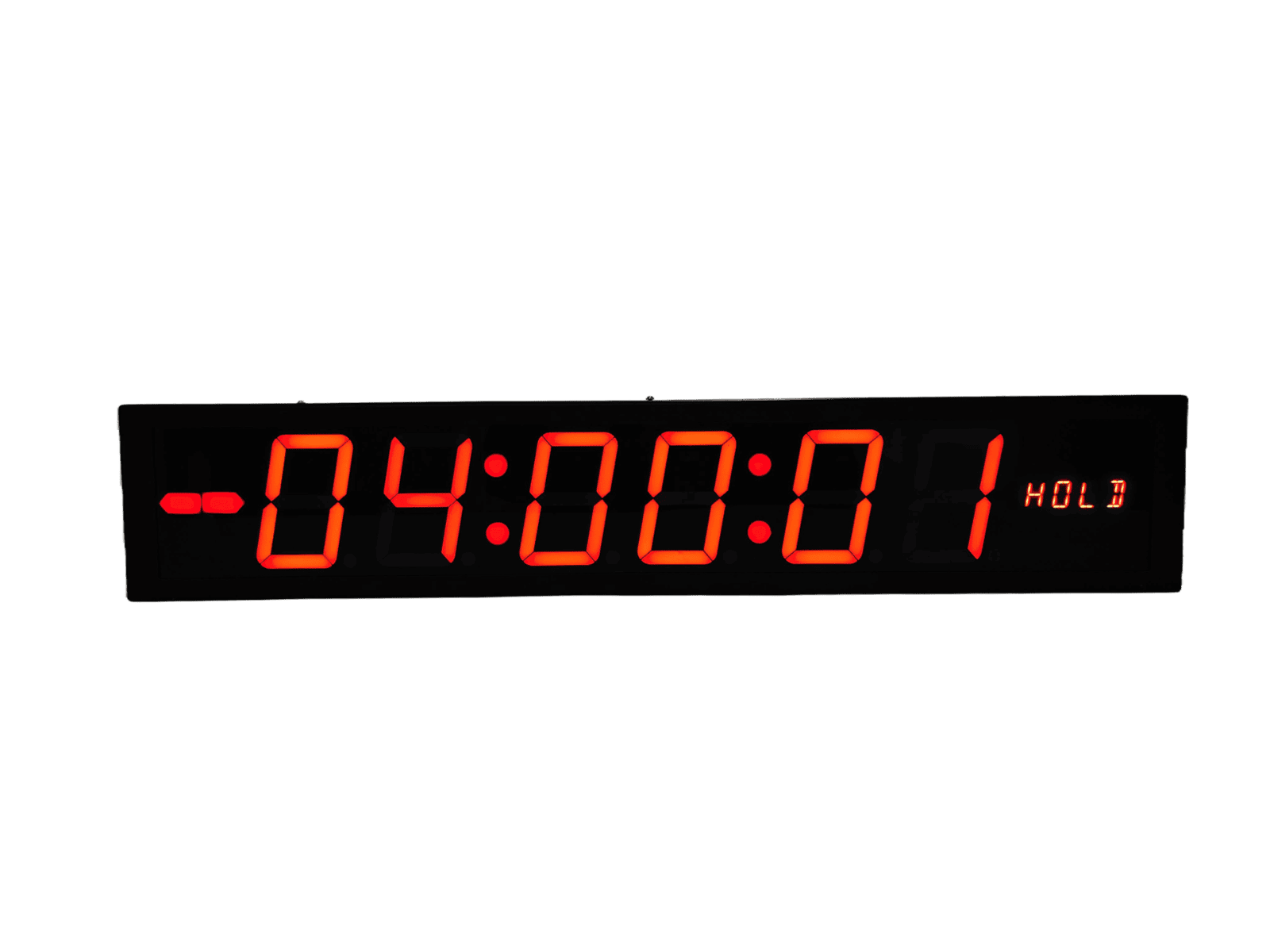

The Count Down Time Signal generator is a precision Digital clock, which generates and displays time in hours minutes and seconds along with sign and hold status.
Controls and Other Outputs
Our generators can be controlled remotely through RS232 and ETH interfaces. It also provide other code outputs such as DC Level Shift Codes - EIA , TTL, UDP, BCD, RS232.
TIME CODE ANALYSIS

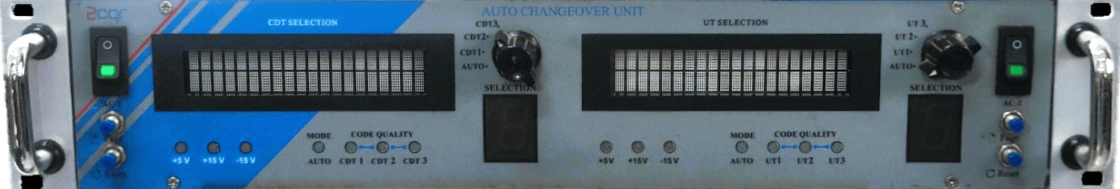

AUTO CHANGEOVER UNIT - ACU
The Auto Changeover Unit(ACU) is a time code quality control device which checks signal quality, data availability and several other factors to decide the best code for further transmission and distribution. Both UT and CDT code from multiple sources are compared to get the best signal output
TIME DISTRIBUTION

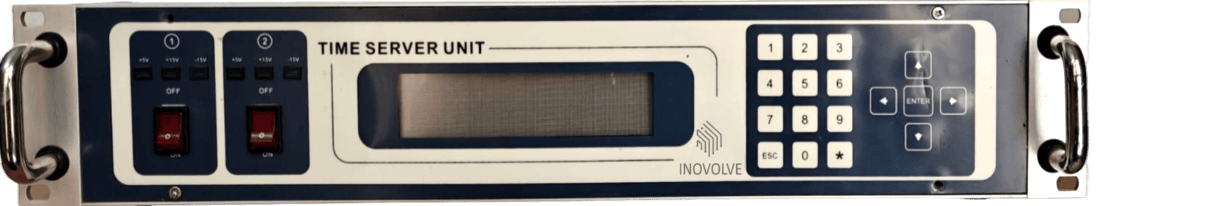

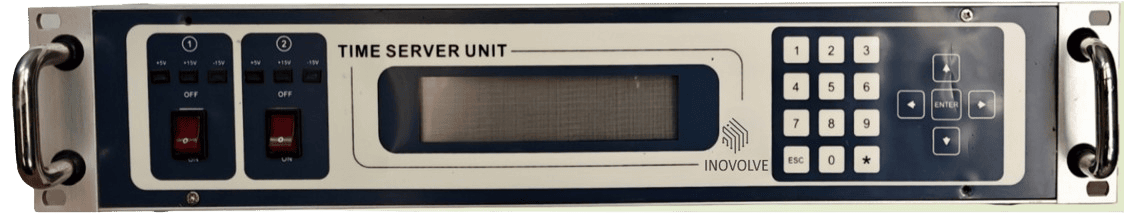

DIGITAL - UDP TIME SERVER
Time server is a Ethernet based time distribution unit that takes in IRIG-B balanced input from the generators and convert it into UDP packets with all the time information.
Supports Unicast and Multicast UDP Transmission in four RJ45 ports
Additionally each RJ45 Port Supports 12 Unique IP Outputs
ANALOG - LINE DRIVER

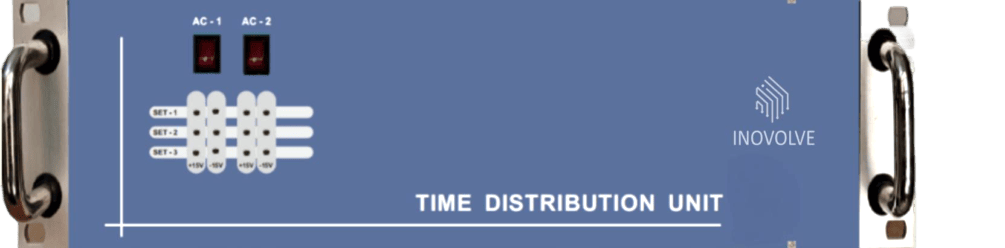

The IRIG-B Signal Distribution Unit is a high-performance, compact system designed to receive and convert two unbalanced IRIG-B input signals into 36 balanced outputs for long-distance signal transmission
TIME READERS

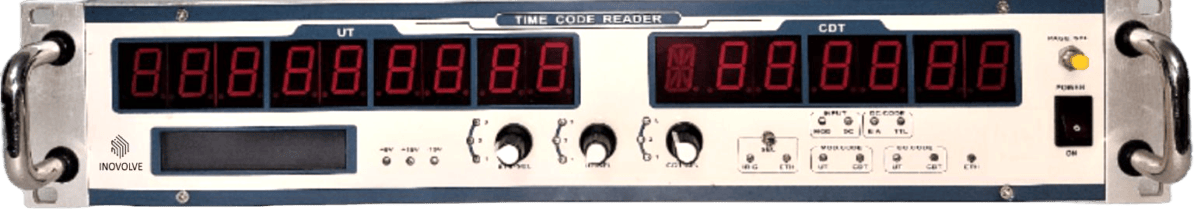

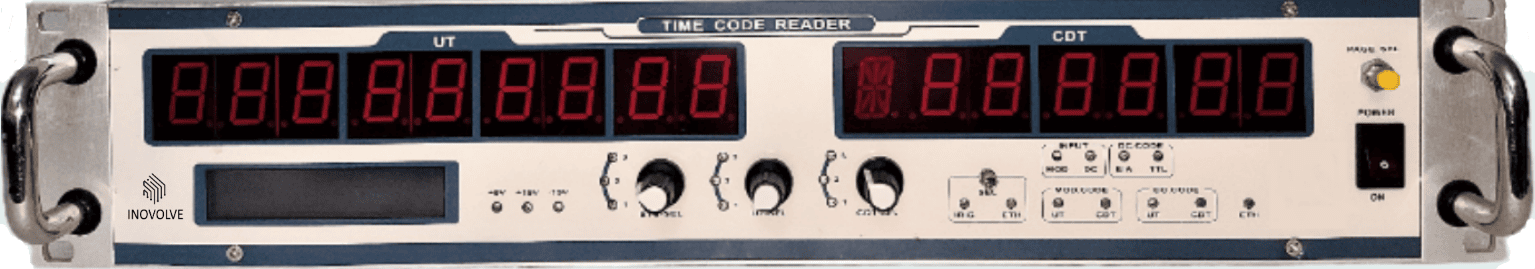

Time Code Reader
The Time Code Reader Unit is built to read, verify, and transmit both Universal Time (UT) and Countdown Time (CDT) codes. It features dedicated 0.8” seven-segment LED displays for UT and CDT, with clear LED indicators for power status, input modes (MOD/DC), code types (EIA/TTL), and Ethernet data availability.

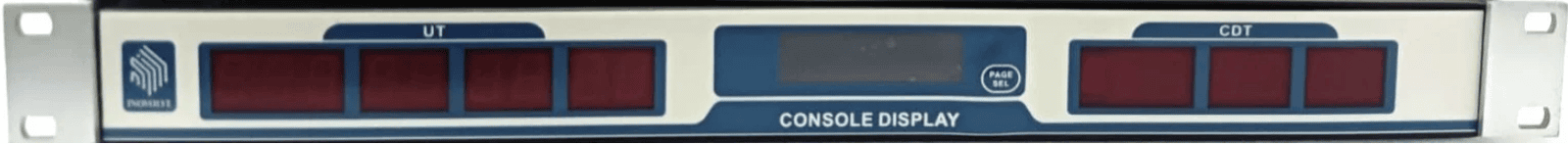

Console - Displays
The Console Display is a compact 1U unit supporting three balanced IRIG-B CDT inputs and one balanced IRIG-B UT input for analog time display. It features a 1 Gbps Ethernet (RJ45) port for UDP data, a dedicated OLED status display, and automatic changeover between IRIG and Ethernet sources to ensure uninterrupted time availability.
TIME CODE DISPLAYS

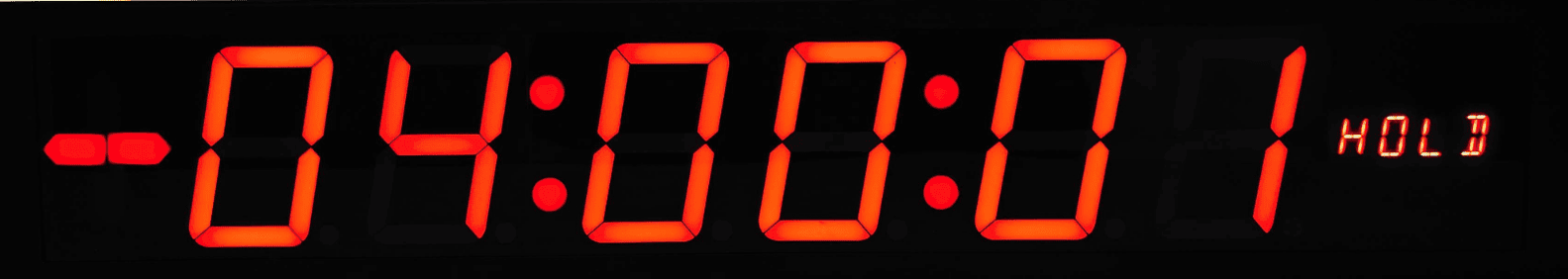

IRIG-B Displays - LED
The IRIG-B Time Display Unit is engineered to display Universal Time (UT) and Countdown Time (CDT) data with exceptional clarity and precision. Designed for critical environments, it supports both IRIG-B, NTP and UDP input formats, ensuring seamless, real-time time code visualization. Its robust construction, high-visibility LEDs, and certified enclosure make it ideal for demanding industrial areas.

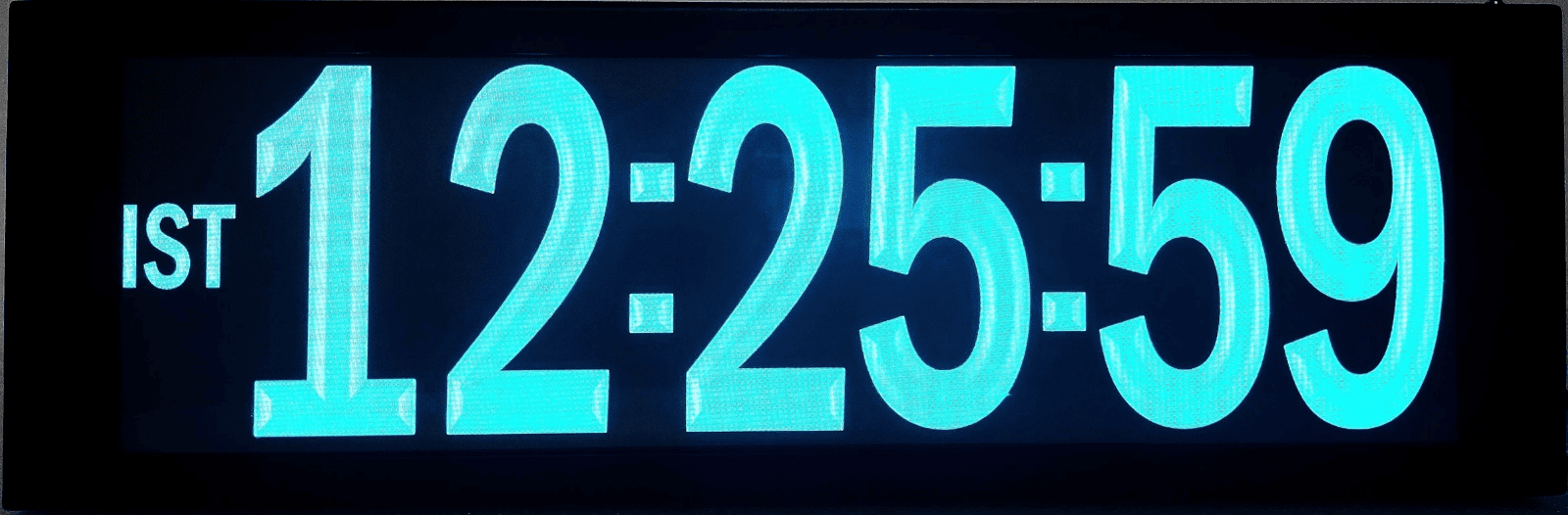

Time Displays - LCD
The LCD Time Displays feature high-visibility 4-inch LCD panels for displaying UT and CDT time data sourced from IRIG or UDP. They offer multiple font and color options, support dual display mode with 2-inch UT and 2-inch CDT readouts, and are available in various size configurations. The displays use elegant fonts and visually pleasant color schemes for clear and professional time presentation.
